CRL Satin Anodized Aluminum Standard Inset Frame Interior Glazed Exchange Window with 18" Shelf and Deal Tray

Item #: S11W18A
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Anodized Aluminum Standard Inset Frame Interior Glazed Exchange Window with 18" Shelf and Deal Tray
×
CRL Satin Anodized Aluminum Standard Inset Frame Interior Glazed Exchange Window with 18" Shelf and Deal Tray
Quantity Standard Price Sale Price Your Price
CRL Satin Anodized Aluminum Standard Inset Frame Interior Glazed Exchange Window with 18" Shelf and Deal Tray Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 7/10/2024
Dallas, Texas In Other Service Center
Chicago (Elgin), Illinois In Other Service Center
San Francisco/Oakland (Union City), California In Other Service Center
Atlanta, Georgia In Other Service Center
New York Area (Secaucus, New Jersey) In Other Service Center
Boston (Taunton), Massachusetts In Other Service Center
Orlando, Florida In Other Service Center
Denver, Colorado In Other Service Center
Seattle (Kent), Washington In Other Service Center
Cleveland (Solon), Ohio In Other Service Center
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona In Other Service Center
Las Vegas, Nevada In Other Service Center
Houston, Texas In Other Service Center
Miami, Florida In Other Service Center
San Diego, California In Other Service Center
Carolinas and Virginia, South Carolina In Other Service Center
Product details
  • Deal Tray Depth
    18 in. (457.2 mm)
  • Deal Tray Height
    2 in. (50.8 mm)
  • Deal Tray Included
    Level 1 or Level 3 Protection
  • Finish/Color:
    Satin Anodized
  • Glazed
    Yes
  • Glazing Thickness
    1/4 in. To 1-7/8 in. (6 mm To 48 mm)
  • Glazing Type
    Specify
Product Overview

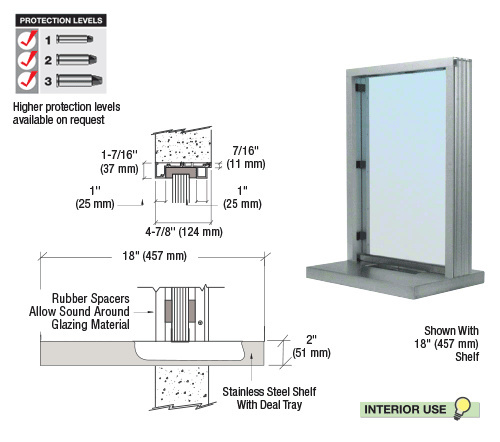

  • Standard Inset Frame with Shelf and Built-In Non-Ricochet Bullet Resistant Deal Tray Plus Surround Sound

CRL Interior Glazed Standard Inset Frame Windows with Surround Sound Voice Transmission System, plus Brushed Stainless Steel Shelf with Non-Ricochet Bullet Resistant Deal Tray. The extruded aluminum frame is intended for installation into walls at least 4-7/8" (124 mm) thick. Typical shelf depths are 12" and 18" (305 and 457 mm). The 18" (457 mm) shelf gives customers a convenient writing surface. Securing the frame to the wall requires the removal and installation of the glazing material and spacer blocks.

SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection
Instructions Included

Product Warning:

CRL recommends a maximum width of 36" (914 mm) when surround sound is used.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
